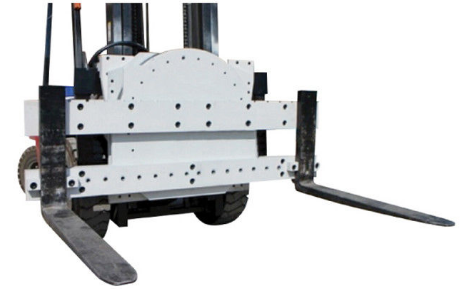

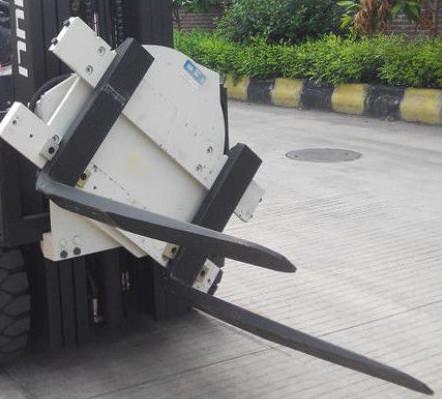

    360 Forklift Attachments Rotator Clamp To Invert Bin 1245mm Carriage

    Forklift accessories forklift rotator rotary clamp1245mm/1550mm/1855mm


    Features

    * The hydraulic motor is fixed with a reversible hydraulic lock and has the function of locking at any angle position.

    * Durable T-beam arm aluminum frame structure.

    * Excellent sliding arm bearing to prolong service life


    Options

    * Different vehicle widths

    * fork


    Parameter

    360 Forklift Attachments Rotator Clamp To Invert Bin 1245mm Carriage


    Capacity@
    Load Center
    (Kg@mm)
    Model No.Carriage Width
    B(mm)
    Fork Max.
    Spacing
    OTO(mm)
    Overall
    Width
    C(mm)
    Vertical
    Center of
    Gravity
    CGV(mm)
    Weight
    (kg)
    Effective
    Thickness
    ET(mm)
    Horizontal
    Center of
    Gravity
    CGH(mm)
    6800@600RRB70D-001C124512451285415924218119
    6800@600RRB70D-002C155015501590410981218127
    6800@600RRB70D-003C1855185518904051040218130


    Remark:

    1. Get the actual capacity of the stacker and accessories from the stacker manufacturer.

    2. A set of additional oil cycles is required on the forklift.

    3. Add forks according to the needs of the user. Please note the capacity of the fork.

    4. For the actual installation, please adjust the position block to the width of the layer fork, select a pairing surface to prevent a load rotation, and the layer fork moves on the upper and lower bars.


    Applicable Industries

    Manufacturing, operation, household, construction, building materials



    Can be customized according to size

    Customized solutions:

    1. Carton Clamp

    2. Block Clamp

    3. Bale Clamp

    4. Roll Clamp

    ......

    all kinds of attachment
