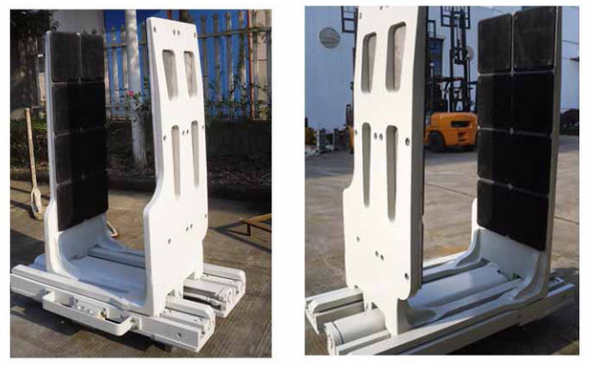

Forklift attachment rotating multi-purpose clamp
Functions & Applications
Multi purpose clamps can safely and efficiently hold all kinds of
cartons, metal boxes, wooden boxes or flexible packaging goods
without pallets. They are widely used in papermaking, textile,
chemical fiber, waste paper recycling, ports and other industries.
Features
* Durable T-beam arm aluminum frame structure.
* Excellent sliding arm bearing to prolong service life.
* Vulcanized rubber pad design, economical.
* The regenerative hydraulic valve can achieve the best arm speed.
* Excellent driving visibility.
Options
* User defined opening range
* Custom pad size
* Various installation categories are available
* Load backrest
Parameter
Capacity@
Load Center
(Kg@mm) | Model No. | Mounting Class | Opening Range
(mm) | Arm Height
A(mm) | Arm
Length
B (mm) | Frame
Width
D (mm) | Arm
Thickness
C (mm) | Overall
Height
H (mm) | Vertical
Center of
Gravity
CGV(mm) | Weight
(kg) | Effective
Thickness
ET(mm) | Horizontal
Center of
Gravity
CGH(mm) |
| 1400@500 | MCS15D-001A | II | 420-1570 | 455 | 955 | 865 | 55 | 665 | 260 | 465 | 175 | 355 |
| 1400@500 | MCS15D-002A | II | 520-1720 | 415 | 1220 | 865 | 70 | 665 | 220 | 485 | 195 | 415 |
| 1900@500 | MCS20D-003A | II | 520-1750 | 600 | 1015 | 940 | 75 | 665 | 265 | 475 | 175 | 366 |
| 1900@500 | MCS20D-004A | II | 560-1760 | 455 | 955 | 940 | 55 | 665 | 260 | 475 | 175 | 350 |
| 1900@500 | MCS20D-005A | II | 520-1720 | 415 | 1220 | 940 | 70 | 665 | 220 | 495 | 195 | 410 |
| 1900@500 | MCS20D-006A | II | 560-1800 | 460 | 750 | 940 | 55 | 665 | 220 | 356 | 180 | 236 |
| 1900@500 | MCS20D-007A | II | 550-1800 | 460 | 905 | 940 | 55 | 665 | 220 | 386 | 180 | 292 |
| 2700@500 | MCS30D-008B | III | 600-1950 | 455 | 750 | 1015 | 60 | 730 | 255 | 484 | 215 | 215 |
| 2700@500 | MCS30D-009A | II | 600-1950 | 455 | 955 | 1015 | 60 | 730 | 255 | 542 | 205 | 275 |
| 2700@500 | MCS30D-009B | III | 600-1950 | 455 | 955 | 1015 | 60 | 730 | 255 | 543 | 215 | 270 |
| 2700@500 | MCS30D-010A | II | 595-1940 | 455 | 1160 | 1015 | 65 | 730 | 255 | 603 | 205 | 340 |
| 2700@500 | MCS30D-010B | III | 595-1940 | 455 | 1160 | 1015 | 65 | 730 | 255 | 604 | 215 | 330 |
Remark:
1. Obtain the actual capacity of forklift and accessories from the
forklift manufacturer.
2. Two sets of additional oil circuits are required on the
forklift.
3. The opening range is the space between the tips of the two arms.
4. The arm thickness "C" is the actual required operating space.
5. You can choose to rotate the multipurpose fixture.
Other sizes are available upon request.
Installation & Option
Hydraulic Flow & Pressure
| Model | Min.
Hydraulic
Flow(L/min) | Rec.
Hydraulic
Flow(L/min) | Max.
Hydraulic
Flow(L/min) | Min.
Hydraulic
Pressure(Bar) | Max.
Hydraulic
Pressure(Bar) |
| MCS20D | 15 | 25 | 25 | 35 | 160 |
| MCS30D | 15 | 40 | 40 | 35 | 160 |
| MCR20D | 20 | 40 | 60 | 35 | 160 |
| MCR30D | 20 | 40 | 60 | 35 | 160 |
Rotator Specifications
| Model | Rotator Speed | Rotator Torque |
| MCR20D | 5.2r/min@57L/min | 9000N.m@160Bar |
| MCR30D | 5.2r/min@57L/min | 9000N.m@160Bar |
Options:
* Raise and thicken the arms.
* Left and right gripper arms are independent joints.
* 180 degree rotation stop mechanism.
Applicable Industries
Manufacturing plant, retail, advertising company, logistics
Can be customized according to size
Customized solutions:
1. Carton Clamp
2. Block Clamp
3. Bale Clamp
4. Roll Clamp
......
all kinds of attachment
