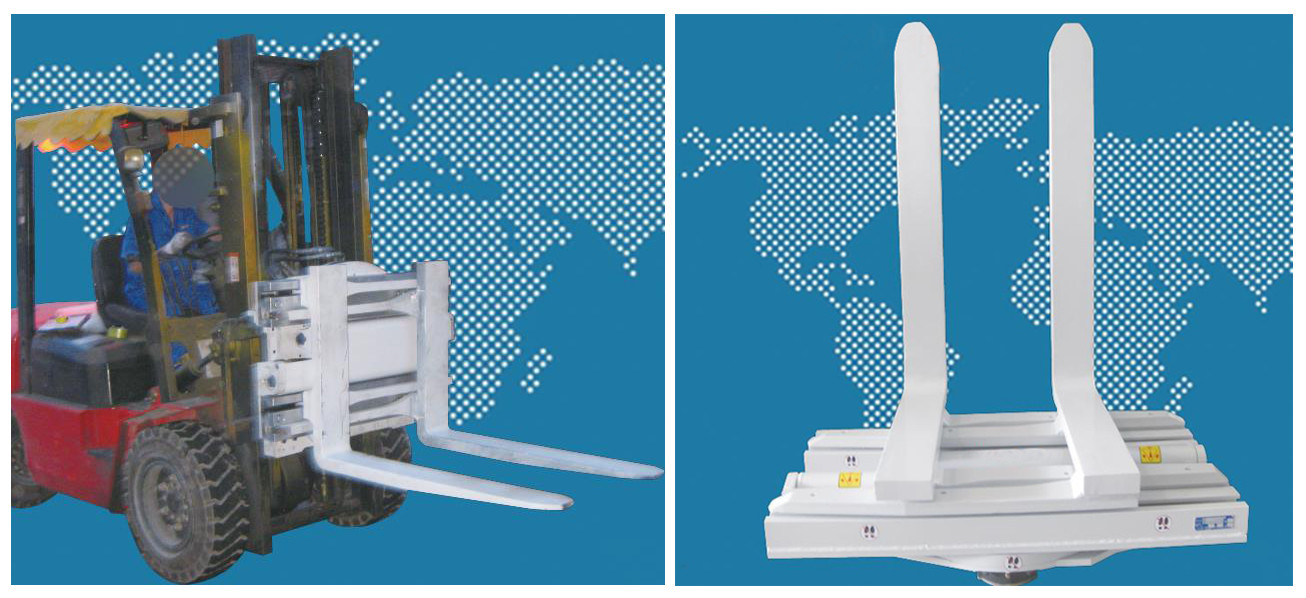

Forklift Sideshifting fork clamp with 1220mm fork
Product Description
CFS30D-008B Fork Length 1065mm, Frame Width 1015mm, Overall Height
725mm, Vertical Center of Gravity 438mm
CFS30D-009A Fork Length 1220mm, Frame Width 1015mm, Overall Height
725mm, Vertical Center of Gravity 435mm
CFS30D-009A Fork Length 1220mm, Frame Width 1015mm, Overall Height
725mm, Vertical Center of Gravity 438mm
Options
* Fork sizes
* Various mounting classes available
* Custom opening ranges
Parameter
Capacity@
Load Center
(Kg@mm) | Model No. | Mounting Class | Opening Range
(mm) | Fork
Length
A(mm) | Frame
Width
B (mm) | Overall
Height
H (mm) | Vertical
Center of
Gravity
CGV(mm) | Weight
(kg) | Effective
Thickness
ET(mm) | Horizontal
Center of
Gravity
CGH(mm) |
| 2300@600 | CFS30D-007A | II | 465-1810 | 915 | 1015 | 725 | 215 | 401 | 208 | 173 |
| 2300@600 | CFS30D-007B | III | 465-1810 | 915 | 1015 | 725 | 210 | 401 | 216 | 168 |
| 2300@600 | CFS30D-008A | II | 465-1810 | 1065 | 1015 | 725 | 195 | 420 | 208 | 203 |
| 2300@600 | CFS30D-008B | III | 465-1810 | 1065 | 1015 | 725 | 200 | 438 | 216 | 201 |
| 2300@600 | CFS30D-009A | II | 465-1810 | 1220 | 1015 | 725 | 190 | 435 | 208 | 203 |
| 2300@600 | CFS30D-009A | III | 465-1810 | 1220 | 1015 | 725 | 190 | 438 | 216 | 201 |
Remark:
1. Obtain the actual capacity of the forklift and attachments from
the forklift manufacturer.
2. Two sets additional oil circuit required on forklift.
3. Opening range is the space between two arms tip.
4. Special arm can be added on the fork clamp as required.
5. Provide the different fork demand as required.
Other size available on request.
Applicable Industries
Hotels, Garment Shops, Building Material Shops, Machinery
RepairShops, Manufacturing Plant
Can be customized according to size
Customized solutions:
Carton Clamp
Block Clamp
Bale Clamp
Roll Clamp
......
all kinds of attachment
