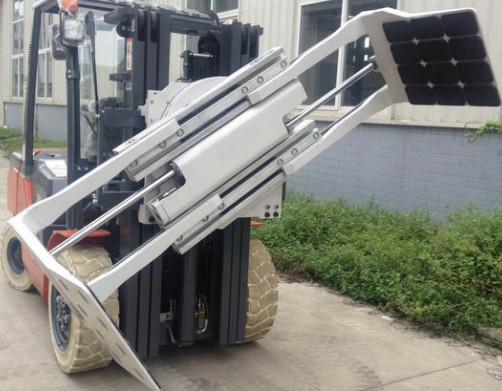

2200kg Forklift accessories tobacco carton clamp
Features
* Good eyesight, safe and reliable use.
* High strength T-shaped steel and aluminum alloy guide groove
structure, durable.
* The sliding bearing with superior performance has long service
life.
* The small rubber pad structure is adopted. After the local rubber
pad of the clamping arm is worn, only the local rubber pad needs to
be replaced, which is economical and practical.
Options
* User defined opening range
* Custom arm size
* Various installation categories are available
* Load backrest
Parameter
Capacity@
Load Center
(Kg@mm) | Model No. | Mounting Class | Opening Range
(mm) | Arm Height
A (mm) | Arm
Length
B (mm) | Frame
Width
D (mm) | Arm
Thickness
C (mm) | Overall
Height
H (mm) | Vertical
Center of
Gravity
CGV(mm) | Weight
(kg) | Effective
Thickness
ET(mm) | Horizontal
Center of
Gravity
CGH(mm) |
| 2200@500 | MTS30D-006A | II | 650-2460 | 580 | 1150 | 1600 | 41 | 740 | 250 | 675 | 150 | 300 |
| 2200@500 | MTS30D-006B | II | 650-2460 | 580 | 1150 | 1600 | 41 | 740 | 250 | 680 | 150 | 300 |
| 2500@500 | MTS30D-007B | III | 600-1945 | 650 | 1350 | 1015 | 41 | 740 | 250 | 720 | 150 | 300 |
Remark:
1. Obtain the actual capacity of forklift and accessories from the
forklift manufacturer.
2. Two sets of additional oil circuits are required on the
forklift.
3. The opening range is the space between the tips of the two arms.
4. The arm thickness "C" is the actual required operating space.
Other size available on request.
Installation&Option
Hydraulic Flow&Pressure
| Model | Min.
Hydraulic
Flow(L/min) | Rec.
Hydraulic
Flow(L/min) | Max.
Hydraulic
Flow(L/min) | Min.
Hydraulic
Pressure(Bar) | Max.
Hydraulic
Pressure(Bar) |
| Sideshifting |
| MTS20D | 15 | 25 | 25 | 35 | 160 |
| MTS30D | 15 | 40 | 40 | 35 | 160 |
| Rotary |
| MTR20D | 20 | 40 | 60 | 35 | 160 |
| MTR30D | 20 | 40 | 60 | 35 | 160 |
Rotator Specifications
| Model | Rotator Speed | Rotator Torque |
| MTR20D | 5.2r/min@57L/min | 9000N.m@160Bar |
| MTR30D | 5.2r/min@57L/min | 9000N.m@160Bar |
Applicable Industries
Manufacturing plant, machinery repair plant, manufacturing plant,
food and beverage plant
Can be customized according to size
Customized solutions:
Carton Clamp
Block Clamp
Bale Clamp
Roll Clamp
......
all kinds of attachment
