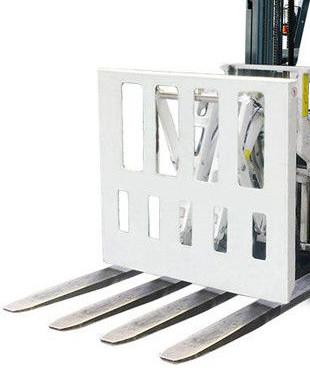

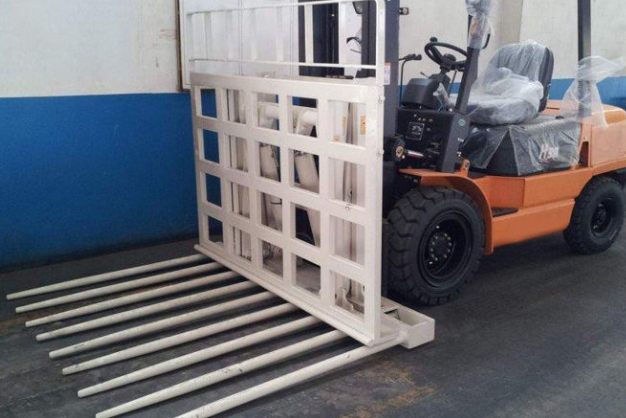

paper bags Carton Clamp Attachment 241mm Thickness

Forklift Attachment with Bag Load Push

Functions & Applications
The utility model is used for a sliding plate for transporting paper bags, cartons or bottled goods, does not need the transportation and stacking of pallets, and realizes high efficiency and low cost.

Features
* High strength steel structure is designed to meet users' efficient and continuous operation.
* Meet the working requirements under different working conditions.
* Reasonable design and good vision.

Options
* Extended push plate
* Install different levels
* Special payment

Parameter

Capacity@ Load Center (Kg@mm)	Model No.	Width of Faceplate (mm)	Height of Faceplate (mm)	Sideshift (mm)	Stroke (mm)	Round Diamensions (mm)	Number of Round Bars	Weight (kg)	Effective Thickness ET(mm)	Horizontal Center of Gravity CGH(mm)
1600@600	PLB20D-001A	1000	1000	No	1180	φ55*1200	6	550	241	329
2500@600	PLB30D-002B	1000	1000	No	1180	φ55*1200	6	590	241	329
2500@600	PLS30D-003B	1000	1000	±100	1280	φ55*1300	6	650	241	329
2500@600	PLB30D-004B	1100	1100	No	1180	φ55*1200	6	620	241	329
2500@600	PLS30D-005B	1100	1100	±100	1280	φ55*1300	6	680	241	329
2500@600	PLB30D-006B	1200	1200	No	1180	φ55*1200	6	650	241	329
2500@600	PLS30D-007B	1200	1200	±100	1380	φ55*1400	6	710	241	329

Page:
1. Obtain the actual production capacity of forklift and forklift accessories manufacturers.
Additional oil pipes required for
2. 1/2 sets of forklifts.

Other sizes can be customized as required.

Installation & Option
Hydraulic Flow & Pressure

Model	Min. Hydraulic Flow(L/min)	Rec. Hydraulic Flow(L/min)	Max. Hydraulic Flow(L/min)	Min. Hydraulic Pressure(Bar)	Max. Hydraulic Pressure(Bar)
PLB20D	20	40	60	35	160
PLB30D	20	40	60	35	160

option:
* Fork / round stick.
* Extend the push plate.

Applicable Industries
Factories, hotels, clothing stores, building materials, machinery repair shops.

Can be customized according to size
Customized solutions:
1. Carton Clamp
2. Block Clamp
3. Bale Clamp
4. Roll Clamp
......
all kinds of attachment
