Drum clamp for 1400KG and 1900kg forklift trucks with different
weights
Functions & Applications

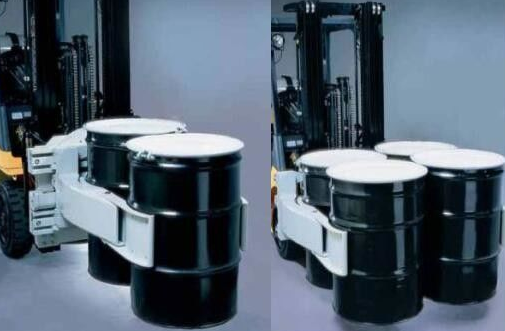

The drum gripper allows the forklift to carry two or four oil drums
at the same time, to ensure its safe and reliable tension in the
transport process and to significantly improve handling efficiency.
It is widely used in the oil and chemical industry and other
applications that have to handle standard barrels.
Features
* Sustainable T-ray arm structure made of aluminium.
* Excellent glacier storage for prolonging life.
* The regenerative hydraulic valve can achieve the best arm speed.
* Excellent visibility.
* The rubber cushion on the clamp arm can be easily replaced. It is
economical and practical.
Options
* Install different available categories
* Initial appropriation
Parameter
Capacity@
Load Center
(Kg@mm) | Model No. | Opening
Range
O
(mm) | Frame
Width
C
(mm) | Overall
Height
D
(mm) | Hook
Spread
E
(mm) | Vertical
Center of
Gravity
CGV
(mm) | Weight
(kg) | Effective
Thickness
ET(mm) | Horizontal
Center of
Gravity
CGH(mm) |
| 2-Drum Sideshifting | | | | | | | | |
| 1400@500 | DTS15D-001A | 395-1545 | 940 | 645 | 890 | 210 | 285 | 145 | 100 |
| 1400@500 | DTS15D-002A | 485-1600 | 865 | 620 | 760 | 210 | 270 | 140 | 107 |
| 1900@500 | DTS15D-002A | 520-1750 | 940 | 620 | 760 | 220 | 295 | 145 | 104 |
| 2-Drum Revolving | | | | | | | | |
| 1900@500 | DTR20D-004A | 520-1750 | 940 | 775 | 815 | 410 | 522 | 241 | 140 |
| 4-Drum Sideshifting | | | | | | | | |
| 1400@500 | DTR20D-004A | 335-1480 | 940 | 645 | 890 | 220 | 385 | 147 | 290 |
| 1400@500 | DFS15D-006A | 420-1550 | 865 | 620 | 760 | 210 | 370 | 142 | 312 |
| 1900@500 | DFS20D-007A | 460-1690 | 940 | 645 | 890 | 220 | 395 | 147 | 295 |
| 4-Drum Revolving | | | | | | | | |
| 1900@500 | DFR20D-008A | 460-1690 | 940 | 775 | 815 | 335 | 613 | 239 | 277 |
Remark:
1. Get the actual capacity of the stacker and accessories from the
stacker manufacturer.
2. Two sets of additional oil circuits are required on the
forklift.
3. The opening range refers to the arc mean state of the roller
clamp pad.
4. The double roller clamp can carry one or two rollers.
5. Four drumsticks can carry one, two or four drums.
6. It is suitable for handling 55 gallons (US system: 205 litres)
of commercial oil barrels.
Other sizes are available on request.
Installation & Option
Hydraulic Flow & Pressure
| Model | Min.
Hydraulic
Flow(L/min) | Rec.
Hydraulic
Flow(L/min) | Max.
Hydraulic
Flow(L/min) | Min.
Hydraulic
Pressure(Bar) | Max.
Hydraulic
Pressure(Bar) |
| Side shift |
| DTS20D | 15 | 25 | 25 | 35 | 160 |
| DTS30D | 15 | 40 | 40 | 35 | 160 |
| Revolving | | | | | |
| DTR20D | 20 | 40 | 60 | 35 | 160 |
| DTR30D | 20 | 40 | 60 | 35 | 160 |
Rotator Specifications
| Model | Rotator Speed | Rotator Torque |
| DTR20D | 5.2r/min@57L/min | 9000N.m@160Bar |
| DTR30D | 5.2r/min@57L/min | 9000N.m@160Bar |
Options:
* Lift and Tong Arm.
* Left and right arms are independent joints.
Applicable Industries
Construction engineering, energy and mining as well as other
applications requiring the handling of standard drums.
Can be customized according to size
Customized solutions:
1. Carton Clamp
2. Block Clamp
3. Bale Clamp
4. Roll Clamp
......
all kinds of attachment
