1400kg 1900kg Revolving Drum Clamps For Forklift With Different
Lift Capacity
Functions & Applications

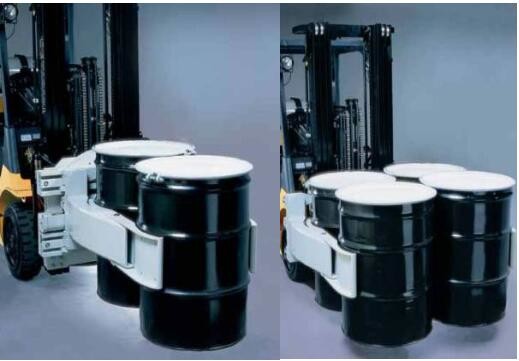

Drum clamps can make the forklift carry two or four oil drums at
the same time, to ensure that it is safe and reliable clamping in
the process of transportation, significantly improve handling
efficiency.
Widely used in the petroleum and chemical industry and in other
applications that require the handling of standard drums.
Features
* Proven durable T-beam arm aluminum frame construction.
* Superior arm-slide bearing for extended service life.
* Regenerative hydraulic valving for optimal arm speed.
* Excellent driver visibility.
* Rubber pads on clamp arms can be replaced conveniently. It is
economic and practical.
Options
* Various mounting classes available
* Custom opening ranges
Parameter
Capacity@
Load Center
(Kg@mm) | Model No. | Opening
Range
O
(mm) | Frame
Width
C
(mm) | Overall
Height
D
(mm) | Hook
Spread
E
(mm) | Vertical
Center of
Gravity
CGV
(mm) | Weight
(kg) | Effective
Thickness
ET(mm) | Horizontal
Center of
Gravity
CGH(mm) |
| 2-Drum Sideshifting | | | | | | | | |
| 1400@500 | DTS15D-001A | 395-1545 | 940 | 645 | 890 | 210 | 285 | 145 | 100 |
| 1400@500 | DTS15D-002A | 485-1600 | 865 | 620 | 760 | 210 | 270 | 140 | 107 |
| 1900@500 | DTS15D-002A | 520-1750 | 940 | 620 | 760 | 220 | 295 | 145 | 104 |
| 2-Drum Revolving | | | | | | | | |
| 1900@500 | DTR20D-004A | 520-1750 | 940 | 775 | 815 | 410 | 522 | 241 | 140 |
| 4-Drum Sideshifting | | | | | | | | |
| 1400@500 | DTR20D-004A | 335-1480 | 940 | 645 | 890 | 220 | 385 | 147 | 290 |
| 1400@500 | DFS15D-006A | 420-1550 | 865 | 620 | 760 | 210 | 370 | 142 | 312 |
| 1900@500 | DFS20D-007A | 460-1690 | 940 | 645 | 890 | 220 | 395 | 147 | 295 |
| 4-Drum Revolving | | | | | | | | |
| 1900@500 | DFR20D-008A | 460-1690 | 940 | 775 | 815 | 335 | 613 | 239 | 277 |
Remark:
1.Obtain the actual capacity of the forklift and attachments from
the forklift manufacturer.
2.Two sets additional oil circuit required on forklift.
3.Opening range refers to the radian medial spacing of clamp pad of
drum clamp.
4.Two drums clamp type can carry one or two drums.
5.Four drums clamp type can carry one, two or four drums.
6.Suitable for handling 55 gallon (American: 205 liters) of
standard oil drum.
Other size available on request.
Installation & Option
Hydraulic Flow & Pressure
| Model | Min.
Hydraulic
Flow(L/min) | Rec.
Hydraulic
Flow(L/min) | Max.
Hydraulic
Flow(L/min) | Min.
Hydraulic
Pressure(Bar) | Max.
Hydraulic
Pressure(Bar) |
| Side shift |
| DTS20D | 15 | 25 | 25 | 35 | 160 |
| DTS30D | 15 | 40 | 40 | 35 | 160 |
| Revolving | | | | | |
| DTR20D | 20 | 40 | 60 | 35 | 160 |
| DTR30D | 20 | 40 | 60 | 35 | 160 |
Rotator Specifications
| Model | Rotator Speed | Rotator Torque |
| DTR20D | 5.2r/min@57L/min | 9000N.m@160Bar |
| DTR30D | 5.2r/min@57L/min | 9000N.m@160Bar |
Options:
* Heightening and large clamp arm.
* Left and right clip arm independent movement type.
Applicable Industries
Construction works, Energy & Mining and in other applications that require the handling of standard
drums.
