Forklift Attachment Inverta Pushs Clamp No-Sideshifting

IVP15D-001B Opening Range 1250mm, Side Plate Cantilever Range 600-750mm, Horizontal Center of Gravity 475mm, Weight 1320kg

IVP20D-001B Opening Range 1250mm, Side Plate Cantilever Range600-750mm, Horizontal Center of Gravity 475mm, Weight 1420kg

Functions & Applications
Applied to the carrying, loading, unloading and stacking with pallets of bagged goods (especially free of maintenance. for soft bagged goods) such as plastic particles, cement, chemical fertilizer, fodder, rice, etc. Without manual work, the goods can be revolved 180 degree, pushed off and pallets can be taken out, being safe, efficient and labor saving.

Features
* Hydraulic elements are reasonable in design, durable and with fine visibility.
* The oil-free lubrication system applied to each joint ensures better protection of the pins and axles, free of maintenance.

Options
* Different fork width and length
* Different opening range and push plate dimension

* Different mounting class

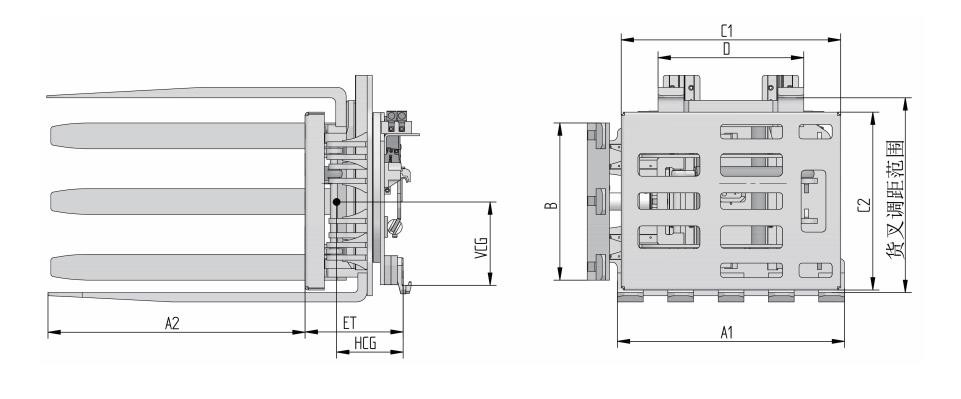

Parameter

Remark:
1. Non-sideshifting type: one magnetic vlave equipped

Other size available on request.

Hydraulic Flow&Pressure

Options:

Integral fork plate

Widen and lengthen push plate

Applicable Industries

Manufacturing Plant, Hotels, Garment Shops, Building Material Shops

Can be customized according to size
Customized solutions:
Carton Clamp
Block Clamp
Bale Clamp
Roll Clamp
......
all kinds of attachment

Bonafe is an enterprise specializing in the research and development, production and sales of series forklift accessories and forklift parts. The company's products include forklift truck accessories, such as soft pack clamps, ejectors, paper roll clamps, fork clamps, drum clamps, tire clamps, steel pipe clamps, rotary pushers, etc. Forklift attachments, and various sizes of forklift attachments can be customized according to customer needs. Forklift parts and various precision machinery parts.

Bonafe has strong technical force. The forklift attachments produced by Bonafe are widely used in chemical fiber, textile, machinery, white goods, papermaking, tobacco, storage and distribution, docks and other materials handling operations. It is an ideal product to replace the traditional forklift single operation. Give full play to the performance advantages of forklifts. Products are exported to Europe, the United States, Southeast Asia and other markets.
