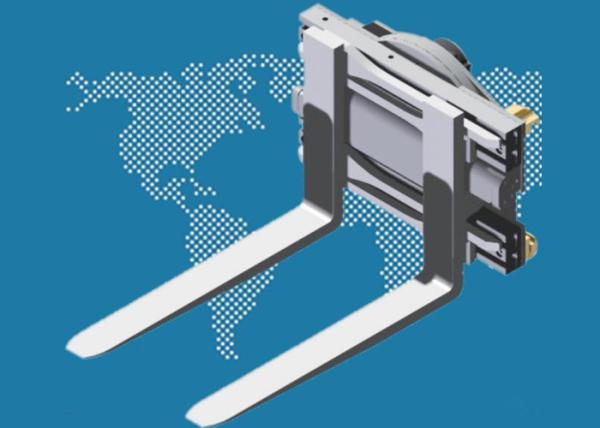

Forklift revolving fork clamp with 915mm fork
Product Description
CFR20D-101A Fork Length 915mm, Frame Width 940mm, Overall Height
775mm, Vertical Center of Gravity 280mm
CFR20D-102A Fork Length 1065mm, Frame Width 940mm, Overall Height
775mm, Vertical Center of Gravity 275mm
CFR20D-103A Fork Length 1220mm, Frame Width 940mm, Overall Height
775mm, Vertical Center of Gravity 265mm
Options
* Detachable two barrels of clamp arm
* Detachable four bottles clamp arm
* Detachable rubber pad clamp arm
* Left and right clip arm independent movement type
Parameter
Capacity@
Load Center
(Kg@mm) | Model No. | Mounting Class | Opening Range
(mm) | Fork
Length
A (mm) | Frame
Width
D(mm) | Overall
Height
H (mm) | Vertical
Center of
Gravity
CGV(mm) | Weight
(kg) | Effective
Thickness
ET(mm) | Horizontal
Center of
Gravity
CGH(mm) |
| 1600@600 | CFR20D-101A | II | 410-1660 | 915 | 940 | 775 | 280 | 561 | 287 | 188 |
| 1600@600 | CFR20D-102A | II | 410-1660 | 1065 | 940 | 775 | 275 | 579 | 287 | 213 |
| 1600@600 | CFR20D-103A | II | 410-1660 | 1220 | 940 | 775 | 265 | 597 | 287 | 230 |
Remark:
1. Obtain the actual capacity of the forklift and attachments from
the forklift manufacturer.
2. Two sets additional oil circuit required on forklift.
3. Opening range is the space between two arms tip.
4. Special arm can be added on the fork clamp as required.
5. Provide the different fork demand as required.
Other size available on request.
Installation&Option
Hydraulic Flow&Pressure
| Model | Min.
Hydraulic
Flow(L/min) | Rec.
Hydraulic
Flow(L/min) | Max.
Hydraulic
Flow(L/min) | Min.
Hydraulic
Pressure(Bar) | Max.
Hydraulic
Pressure(Bar) |
| Revolving |
| CFR20D | 20 | 40 | 60 | 35 | 160 |
Rotator Specifications
| Model | Rotator Speed | Rotator Torque |
| CFR20D | 5.2r/min@57L/min | 9000N.m@160Bar |
Applicable Industries
Hotels, Garment Shops, Building Material Shops, Machinery
RepairShops, Manufacturing Plant
Can be customized according to size
Customized solutions:
Carton Clamp
Block Clamp
Bale Clamp
Roll Clamp
......
all kinds of attachment
