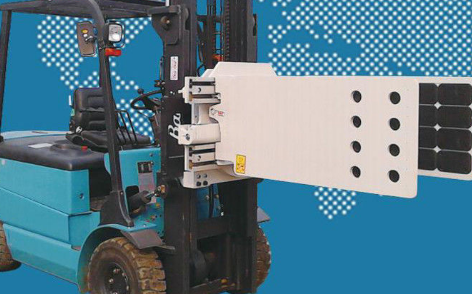

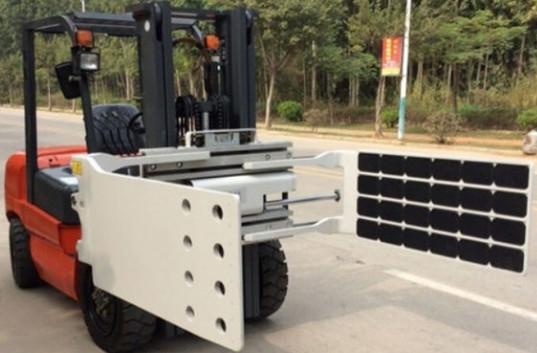

1400kg Tobacco carton clamp for forklift
Functions & Applications
Tobacco carton clamp can efficiently and economically dispose of
waste packages such as carton, wooden box and metal box.
Features
* Sustainable T-ray arm structure made of aluminium.
* Excellent glacier storage for prolonging life.
* Small rubber pad design, economical.
Options
* User defined opening range
* Custom arm size
* Various installation categories are available
* Load backrest
Parameter
Capacity@
Load Center
(Kg@mm) | Model No. | Mounting Class | Opening Range
(mm) | Arm Height
A (mm) | Arm
Length
B (mm) | Frame
Width
D (mm) | Arm
Thickness
C (mm) | Overall
Height
H (mm) | Vertical
Center of
Gravity
CGV(mm) | Weight
(kg) | Effective
Thickness
ET(mm) | Horizontal
Center of
Gravity
CGH(mm) |
| 1400@500 | MTS15D-001A | II | 460-1600 | 580 | 930 | 940 | 35 | 665 | 220 | 420 | 127 | 300 |
| 1400@500 | MTS15D-002A | II | 460-1600 | 580 | 1130 | 940 | 35 | 665 | 220 | 450 | 127 | 380 |
| 1400@500 | MTS15D-003A | II | 460-1600 | 580 | 1130 | 940 | 30 | 665 | 263 | 430 | 127 | 380 |
Remark:
1. Obtain the actual capacity of forklift and accessories from the
forklift manufacturer.
2. Two sets of additional oil circuits are required on the
forklift.
3. The opening range is the space between the tips of the two arms.
4. The arm thickness "C" is the actual required operating space.
Other size available on request.
Applicable Industries
Manufacturing plant, machinery repair, manufacturing plant, food
and drink plant
Can be customized according to size
Customized solutions:
1. Carton Clamp
2. Block Clamp
3. Bale Clamp
4. Roll Clamp
......
all kinds of attachment
