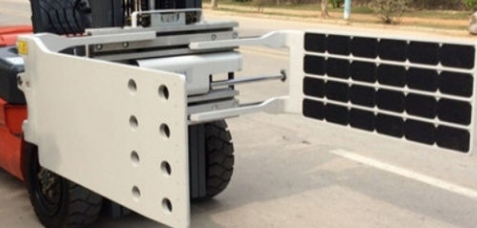

1400kg Tobacco carton glue for forklift trucks
Functions & Applications
The tobacco carton clamp can efficiently and economically dispose
of waste packaging such as cardboard, wooden box and metal box.
Features
* Durable T-beam arm aluminum frame structure.
* Excellent sliding arm bearing to prolong service life.
* Small rubber pad design, economical.
Options
* User defined range
* Custom arm size
* Various installation categories are available
* Load backrest
Parameter
Capacity@
Load Center
(Kg@mm) | Model No. | Mounting Class | Opening Range
(mm) | Arm Height
A (mm) | Arm
Length
B (mm) | Frame
Width
D (mm) | Arm
Thickness
C (mm) | Overall
Height
H (mm) | Vertical
Center of
Gravity
CGV(mm) | Weight
(kg) | Effective
Thickness
ET(mm) | Horizontal
Center of
Gravity
CGH(mm) |
| 1400@500 | MTS15D-001A | II | 460-1600 | 580 | 930 | 940 | 35 | 665 | 220 | 420 | 127 | 300 |
| 1400@500 | MTS15D-002A | II | 460-1600 | 580 | 1130 | 940 | 35 | 665 | 220 | 450 | 127 | 380 |
| 1400@500 | MTS15D-003A | II | 460-1600 | 580 | 1130 | 940 | 30 | 665 | 263 | 430 | 127 | 380 |
Remark:
1. Get the actual capacity of the stacker and accessories from the
stacker manufacturer.
2. Two sets of additional oil circuits are required on the
forklift.
3. The opening area is the space between the tips of the two arms.
4. The "C" arm thickness is the actual required operating room.
Other size available on request.
Applicable Industries
Manufacturing plant, machinery repair plant, manufacturing plant,
food and beverage plant
Can be customized according to size
Customized solutions:
1. Carton Clamp
2. Block Clamp
3. Bale Clamp
4. Roll Clamp
......
all kinds of attachment
