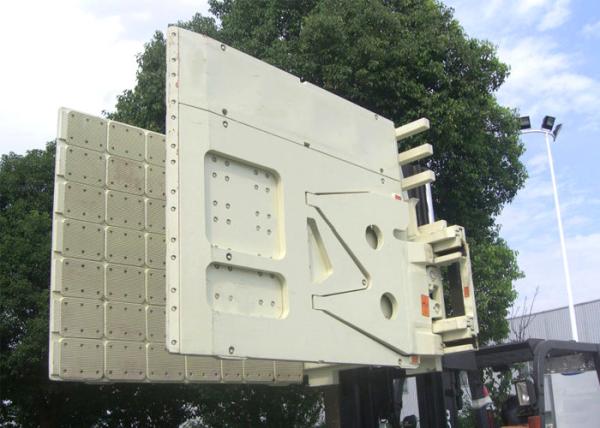

Forklift Appliance Clamp Box Forklift Carton Clamp Attachment

Forklift clamp attachments Carton Clamps

Functions & Applications
Designed for the warehousing, beverage, home-appliance and electronics industries carton clamps allow palletless handling, and save money on pallet purchasing, maintenance. Also improve warehouse space utilization.

Features
* Proven durable T-beam arm aluminum frame construction.
* Superior arm-slide bearing for extended service life.
* Vulcanized rubber pads design, economically.
* Regenerative hydraulic valving for optimal arm speed.
* Excellent driver visibility.

Options
* Custom opening ranges
* Various mounting classes available

Parameter

Capacity@ Load Center (Kg@mm)	Model No.	Mounting Class	Opening Range (mm)	Arm Height A(mm)	Arm Length B (mm)	Frame Width D (mm)	Vertical Center of Gravity CGV(mm)	Weight (kg)	Effective Thickness ET(mm)	Horizontal Center of Gravity CGH(mm)
1150@600	CCS15D-001A	II	380-1530	1220	1220	940	320	650	127	439
1600@510	CCS20D-002A	II	560-1930	1220	1065	1040	325	644	127	422
1600@535	CCS20D-003A	II	560-1930	1220	1170	1040	325	651	127	427
1600@585	CCS20D-004A	II	560-1930	1220	1220	1040	315	696	127	447
1600@610	CCS20D-005A	II	560-1930	1220	1220	1040	320	705	127	450
1400@710	CCS20D-006A	II	560-1930	1220	1240	1040	315	770	127	483
1450@685	CCS20D-007A	II	560-1930	1525	1370	1040	380	824	127	485
2300@510	CCS30D-008B	III	535-1850	1525	1015	1015	450	899	152	485
2300@535	CCS30D-009B	III	535-1850	1525	1015	1015	450	906	152	485

Remark:
1. Obtain the actual capacity of the forklift and attachments from the forklift manufacturer.
2. Two sets additional oil circuit required on forklift.
3. Opening range is the space between two arms tip.
4.All the carton clamps are equipped with four POTS pressure regulating valves

Other size available on request.

Installation & Option
Hydraulic Flow & Pressure

Model	Min. Hydraulic Flow(L/min)	Rec. Hydraulic Flow(L/min)	Max. Hydraulic Flow(L/min)	Min. Hydraulic Pressure(Bar)	Max. Hydraulic Pressure(Bar)
CCS20D	15	25	25	35	160
CCS30D	15	40	40	35	160

Options:
* Four-position pressure regulator valve.
* Pad height extension.
* Heightening load backrest.

Applicable Industries
Machinery Repair Shops, Manufacturing Plant, Food & Beverage Shops, Printing

Can be customized according to size
Customized solutions:
Carton Clamp
Block Clamp
Bale Clamp
Roll Clamp
......
all kinds of attachment
