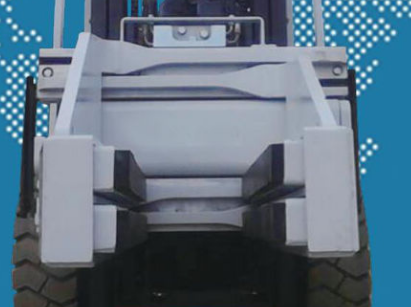

Forklift connecting block clamp cement brick clamp side moving type
Functions & Applications
Forklift connecting block clamps are used for non stacking
transportation of bricks and bricks produced in different
industries all over the world. It can be used to clamp all kinds of
stone and concrete blocks. It is especially suitable for non pallet
transportation and concrete blocks and bricks. Operation of
rockfill, stone, etc.
Features
* High strength T-shaped rod and guide groove structure, durable.
* The rotation life of performing action is long.
Options
* User defined opening range
* Arms of various materials
* Various installation categories are available
* Load backrest
Parameter
Capacity@
Load Center
(Kg@mm) | Model No. | Mounting Class | Opening Range
O (mm) | Arm Height
H (mm) | Arm
Length
L (mm) | Frame
Width
B (mm) | Arm
Thickness
T (mm) | Overall
Height
A (mm) | Vertical
Center of
Gravity
CGV(mm) | Weight
(kg) | Effective
Thickness
ET(mm) | Horizontal
Center of
Gravity
CGH(mm) |
| Sideshifting |
| 2700@500 | CKS30D-001A | II | 290-1610 | 128 | 1100 | 1016 | 202 | 710 | 220 | 500 | 145 | 220 |
| 2700@500 | CKS30D-001B | III | 290-1610 | 128 | 1100 | 1016 | 202 | 710 | 220 | 500 | 152 | 220 |
| 2700@500 | CKS30D-002B | III | 290-1610 | 242 | 1100 | 1016 | 202 | 710 | 220 | 550 | 152 | 220 |
| 2700@500 | CKS30D-002A | II | 290-1610 | 242 | 1100 | 1016 | 202 | 710 | 220 | 550 | 145 | 220 |
| 2700@500 | CKS30D-003A | II | 290-1610 | 128 | 1000 | 1016 | 202 | 710 | 220 | 490 | 145 | 211 |
| 2700@500 | CKS30D-003B | III | 290-1610 | 128 | 1000 | 1016 | 202 | 710 | 220 | 490 | 152 | 220 |
| 2700@500 | CKS30D-004B | III | 290-1610 | 242 | 1400 | 1016 | 202 | 710 | 220 | 650 | 152 | 250 |
Page: 1 Obtain the actual production capacity of forklift and
forklift accessories manufacturers.
Page: 2 The forklift needs another two sets of oil pipes.
Page: 3 The 128mm high arm is a plastic and the 242mm high arm is a
double plastic.
Installation&Option
Hydraulic Flow&Pressure
| Model | Min.
Hydraulic
Flow(L/min) | Rec.
Hydraulic
Flow(L/min) | Max.
Hydraulic
Flow(L/min) | Min.
Hydraulic
Pressure(Bar) | Max.
Hydraulic
Pressure(Bar) |
| CKS30D | 15 | 40 | 40 | 35 | 160 |
Options:
* Left and right gripper arms are independent joints.
Applicable Industries
Hotels, clothing stores, building materials stores
Can be customized according to size
Customized solutions:
1. Carton Clamp
2. Block Clamp
3. Bale Clamp
4. Roll Clamp
......
all kinds of attachment
