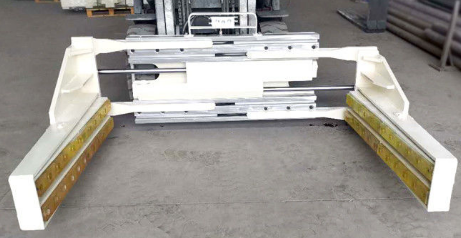

Slide arm clamp for forklift
Functions & Applications
The fork lock clamp is mainly used to clamp all kinds of stones and
bricks. It is suitable for scenes: floor tiles, concrete parts,
stones, graphite, etc. It is a non pallet handling accessory.
Features
* The optimized structural layout can ensure a good vision.
* T-type sliding pair is adopted, which has high strength, uniform
stress and long service life.
* The removable wear-resistant strip is adopted, which is
convenient to replace after wear, economical and practical.
Options
* User defined opening range
* Arms of various materials
* Various installation categories are available
* Load backrest
Parameter
Capacity@
Load Center
(Kg@mm) | Model No. | Mounting Class | Opening Range
O (mm) | Arm Height
H (mm) | Arm
Length
L (mm) | Frame
Width
B (mm) | Arm
Thickness
T (mm) | Overall
Height
A (mm) | Vertical
Center of
Gravity
CGV(mm) | Weight
(kg) | Effective
Thickness
ET(mm) | Horizontal
Center of
Gravity
CGH(mm) |
| Slip-on Arm Type |
| 2500@550 | CKS30D-101A | II | 270-1610 | 94 | 1100 | 1016 | 202 | 710 | 210 | 430 | 208 | 200 |
| 2500@550 | CKS30D-101B | III | 270-1610 | 94 | 1100 | 1016 | 202 | 710 | 210 | 450 | 216 | 210 |
| 1980@700 | CKS30D-102B | III | 270-1610 | 94 | 1400 | 1016 | 202 | 710 | 192 | 480 | 216 | 220 |
| 2600@510 | CKS30D-103A | II | 270-1610 | 94 | 1020 | 1016 | 202 | 710 | 210 | 425 | 208 | 200 |
| 2600@510 | CKS30D-103B | III | 270-1610 | 94 | 1020 | 1016 | 202 | 710 | 210 | 445 | 216 | 210 |
| 1950@650 | CKS30D-104B | III | 270-1610 | 94 | 1300 | 1016 | 202 | 710 | 192 | 500 | 266 | 220 |
Remark:
1. Get the actual capacity of the stacker and accessories from the
stacker manufacturer.
2. Two sets of additional oil circuits are required on the
forklift.
3. The arm height of 128mm is single glue type, and the arm height
of 242mm is double glue type.
Installation&Option
Hydraulic Flow&Pressure
| Model | Min.
Hydraulic
Flow(L/min) | Rec.
Hydraulic
Flow(L/min) | Max.
Hydraulic
Flow(L/min) | Min.
Hydraulic
Pressure(Bar) | Max.
Hydraulic
Pressure(Bar) |
| CKS30D | 15 | 40 | 40 | 35 | 160
|
Options:
* Left and right gripper arms are independent joints.
Applicable Industries
Construction industry, building materials, landscaping, hotel,
clothing business
Can be customized according to size
Customized solutions:
1. Carton Clamp
2. Block Clamp
3. Bale Clamp
4. Roll Clamp
......
all kinds of attachment
