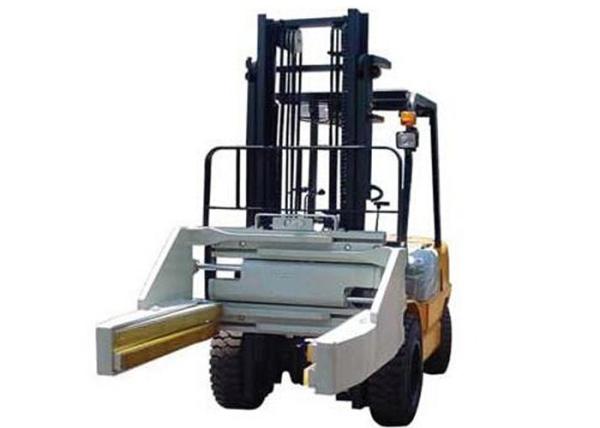

Forklift attachment clamp block clamp forklift attachment
Functions & Applications
Block clamp can safely and efficiently clamp a variety of stone and
brick, suitable for handling and stacking operations without pallet
in the floor tile, concrete, precast concrete, stone, graphite and
other industries.
Features
* Proven durable T-beam arm aluminum frame construction.
* Superior arm-slide bearing for extended service life.
* Durable contact pads, reliable clamping.
* Regenerative hydraulic valving for optimal arm speed.
* Excellent driver visibility.
Options
* Custom opening ranges
* Various material facing arm
* Various mounting classes available
* Load backrests
Parameter
Capacity@
Load Center
(Kg@mm) | Model No. | Mounting Class | Opening Range
O (mm) | Arm Height
H (mm) | Arm
Length
L (mm) | Frame
Width
B (mm) | Arm
Thickness
T (mm) | Overall
Height
A (mm) | Vertical
Center of
Gravity
CGV(mm) | Weight
(kg) | Effective
Thickness
ET(mm) | Horizontal
Center of
Gravity
CGH(mm) |
| Sideshifting |
| 2700@500 | CKS30D-001A | II | 290-1610 | 128 | 1100 | 1016 | 202 | 710 | 220 | 500 | 145 | 220 |
| 2700@500 | CKS30D-001B | III | 290-1610 | 128 | 1100 | 1016 | 202 | 710 | 220 | 500 | 152 | 220 |
| 2700@500 | CKS30D-002B | III | 290-1610 | 242 | 1100 | 1016 | 202 | 710 | 220 | 550 | 152 | 220 |
| 2700@500 | CKS30D-002A | II | 290-1610 | 242 | 1100 | 1016 | 202 | 710 | 220 | 550 | 145 | 220 |
| 2700@500 | CKS30D-003A | II | 290-1610 | 128 | 1000 | 1016 | 202 | 710 | 220 | 490 | 145 | 211 |
| 2700@500 | CKS30D-003B | III | 290-1610 | 128 | 1000 | 1016 | 202 | 710 | 220 | 490 | 152 | 220 |
| 2700@500 | CKS30D-004B | III | 290-1610 | 242 | 1400 | 1016 | 202 | 710 | 220 | 650 | 152 | 250 |
| Slip-on Arm Type |
| 2500@550 | CKS30D-101A | II | 270-1610 | 94 | 1100 | 1016 | 202 | 710 | 210 | 430 | 208 | 200 |
| 2500@550 | CKS30D-101B | III | 270-1610 | 94 | 1100 | 1016 | 202 | 710 | 210 | 450 | 216 | 210 |
| 1980@700 | CKS30D-102B | III | 270-1610 | 94 | 1400 | 1016 | 202 | 710 | 192 | 480 | 216 | 220 |
| 2600@510 | CKS30D-103A | II | 270-1610 | 94 | 1020 | 1016 | 202 | 710 | 210 | 425 | 208 | 200 |
| 2600@510 | CKS30D-103B | III | 270-1610 | 94 | 1020 | 1016 | 202 | 710 | 210 | 445 | 216 | 210 |
| 1950@650 | CKS30D-104B | III | 270-1610 | 94 | 1300 | 1016 | 202 | 710 | 192 | 500 | 266 | 220 |
Remark:
1. Obtain the actual capacity of the forklift and attachments from
the forklift manufacturer.
2. Two sets additional oil circuit required on forklift.
3. Arm height 128mm is single rubber type, arm height 242mm is
double rubber type.
Installation&Option
Hydraulic Flow&Pressure
| Model | Min.
Hydraulic
Flow(L/min) | Rec.
Hydraulic
Flow(L/min) | Max.
Hydraulic
Flow(L/min) | Min.
Hydraulic
Pressure(Bar) | Max.
Hydraulic
Pressure(Bar) |
| CKS20D | 15 | 25 | 25 | 35 | 160 |
| CKS30D | 15 | 40 | 40 | 35 | 160 |
Options:
* Left and right clip arm independent movement type.
Applicable Industries
Manufacturing Plant
Can be customized according to size
Customized solutions:
Carton Clamp
Block Clamp
Bale Clamp
Roll Clamp
......
all kinds of attachment
