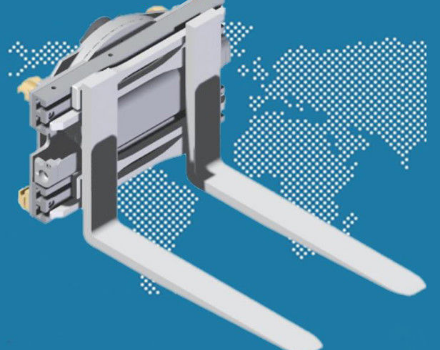

2300kg forklift accessories forklift rotary fork clamp
Product Description
CFR30D-108A Fork Length 1065mm, Frame Width 1015mm, Overall Height
775mm, Vertical Center of Gravity 275mm
CFR30D-108B Fork Length 1065mm, Frame Width 1015mm, Overall Height 775mm, Vertical Center of Gravity 275mm
CFR30D-109A Fork Length 1220mm, Frame Width 1015mm, Overall Height 775mm, Vertical Center of Gravity 270mm
CFR30D-109B Fork Length 1220mm, Frame Width 1015mm, Overall Height 775mm, Vertical Center of Gravity 270mm
Options
* Detachable two barrel clamping arm
* Detachable four bottle clamping arm
* Detachable rubber pad clamp arm
* Left and right arm independent joints
Parameter
Capacity@
Load Center
(Kg@mm) | Model No. | Mounting Class | Opening Range
(mm) | Fork
Length
A (mm) | Frame
Width
D(mm) | Overall
Height
H (mm) | Vertical
Center of
Gravity
CGV(mm) | Weight
(kg) | Effective
Thickness
ET(mm) | Horizontal
Center of
Gravity
CGH(mm) |
| 2300@600 | CFR30D-108A | II | 440-1785 | 1065 | 1015 | 775 | 275 | 685 | 305 | 225 |
| 2300@600 | CFR30D-108B | III | 440-1785 | 1065 | 1015 | 775 | 275 | 704 | 345 | 262 |
| 2300@600 | CFR30D-109A | II | 440-1785 | 1220 | 1015 | 775 | 270 | 695 | 305 | 249 |
| 2300@600 | CFR30D-109B | III | 440-1785 | 1220 | 1015 | 775 | 270 | 712 | 345 | 287 |
Remark:
1. Obtain the actual capacity of forklift and accessories from the
forklift manufacturer.
2. Two sets of additional oil circuits are required on the
forklift.
3. The opening range is the space between the tips of the two arms.
4. The fork clamp can be equipped with a special arm as required.
5. Provide different fork requirements as required.
Other size available on request.
Installation&Option
Hydraulic Flow&Pressure
| Model | Min.
Hydraulic
Flow(L/min) | Rec.
Hydraulic
Flow(L/min) | Max.
Hydraulic
Flow(L/min) | Min.
Hydraulic
Pressure(Bar) | Max.
Hydraulic
Pressure(Bar) |
| Revolving |
| CFR30D | 20 | 40 | 60 | 35 | 160 |
Rotator Specifications
| Model | Rotator Speed | Rotator Torque |
| CFR30D | 5.2r/min@57L/min | 9000N.m@160Bar |
Applicable Industries
Hotels, clothing stores, building materials stores, machinery
maintenance stores and manufacturers
Can be customized according to size
Customized solutions:
1. Carton Clamp
2. Block Clamp
3. Bale Clamp
4. Roll Clamp
......
all kinds of attachment
