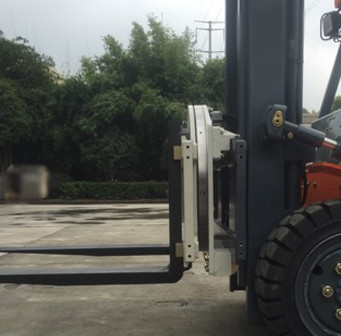

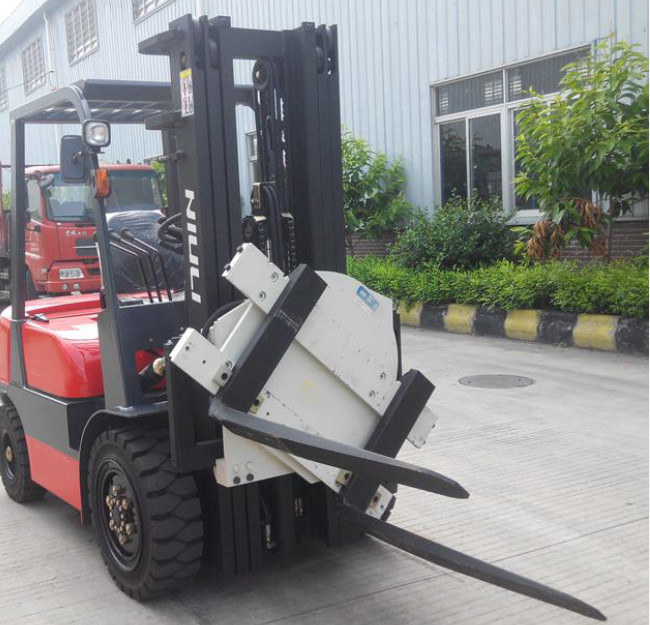

Forklift attachment 360 degree rotator clamp
Functions & Applications
Rotators can 360 degree flip quickly the container which need to
rotate or flip, widely used in food, chemical, environmental
health, goods recycling, smelting ,casting and so on.
Features
* Proven durable T-beam arm aluminium frame construction.
* Superior arm-slide bearing for extended service life.
* Ribs provide secure grip and give driver good tip handling and
bales spinning capabilities.
* Regenerative hydraulic valving for optimal arm speed.
* Excellent driver visibility.
Options
* Different carriage width
* Fork
Parameter
Capacity@
Load Center
(Kg@mm) | Model No. | Carriage Width
B(mm) | Fork Max.
Spacing
OTO(mm) | Overall
Width
C(mm) | Vertical
Center of
Gravity
CGV(mm) | Weight
(kg) | Effective
Thickness
ET(mm) | Horizontal
Center of
Gravity
CGH(mm) |
| 1700@500 | RRB20D-001A | 815 | 705 | 840 | 320 | 188 | 127 | 56 |
| 1600@500 | RRB20D-002A | 815 | 705 | 840 | 265 | 254 | 165 | 122 |
| 1600@500 | RRB20D-003A | 815 | 705 | 840 | 255 | 259 | 165 | 150 |
| 1600@500 | RRB20D-004A | 815 | 705 | 840 | 245 | 268 | 165 | 178 |
| 1600@500 | RRB20D-005A | 815 | 705 | 840 | 235 | 277 | 165 | 206 |
| 2200@500 | RRB20D-006A | 815 | 705 | 840 | 300 | 300 | 150 | 79 |
| 2200@500 | RRB20D-007A | 940 | 835 | 965 | 300 | 309 | 150 | 79 |
| 3000@500 | RRB30D-008A | 940 | 855 | 965 | 270 | 313 | 150 | 81 |
| 3000@500 | RRB30D-008B | 940 | 855 | 965 | 290 | 329 | 191 | 114 |
| 3000@500 | RRB30D-009A | 1145 | 1060 | 1170 | 265 | 327 | 150 | 84 |
| 3000@500 | RRB30D-009B | 1145 | 1060 | 1170 | 285 | 343 | 191 | 117 |
| 3500@500 | RRB35D-010B | 1065 | 990 | 1090 | 290 | 390 | 201 | 124 |
| 3500@500 | RRB35D-011B | 1220 | 1140 | 1245 | 290 | 406 | 201 | 127 |
| 5400@500 | RRB50D-001B | 1065 | 960 | 1090 | 340 | 465 | 163 | 84 |
| 5400@500 | RRB50D-001C | 1065 | 960 | 1090 | 285 | 518 | 221 | 132 |
| 5400@500 | RRB50D-002B | 1525 | 1418 | 1550 | 330 | 513 | 163 | 91 |
| 5400@500 | RRB50D-002C | 1525 | 1418 | ·1550 | 275 | 565 | 221 | 137 |
| 5400@600 | RRB50D-003C | 1245 | 1115 | 1285 | 400 | 726 | 173 | 97 |
| 5400@600 | RRB50D-004C | 1550 | 1420 | 1590 | 395 | 783 | 173 | 99 |
| 5400@600 | RRB50D-005C | 1855 | 1725 | 1890 | 390 | 840 | 173 | 102 |
| 6800@600 | RRB70D-001C | 1245 | 1245 | 1285 | 415 | 924 | 218 | 119 |
| 6800@600 | RRB70D-002C | 1550 | 1550 | 1590 | 410 | 981 | 218 | 127 |
| 6800@600 | RRB70D-003C | 1855 | 1855 | 1890 | 405 | 1040 | 218 | 130 |
Remark
1. Obtain the actual capacity of the forklift and attachments from
the forklift manufacturer.
2. One set additional oil circuit required on forklift.
3. According to user needs to add forks. Please note the forks’
capacity.
4. The actual mounting, please according to the fork width
adjustment positioning block, choose one mating surface preventing
load rotates, fork on the upper and lower cross beam under moving.
Applicable Industries
Food, chemical, environmental health, goods recycling, smelting
,casting
Can be customized according to size
Customized solutions:
Carton Clamp
Block Clamp
Bale Clamp
Roll Clamp
......
all kinds of attachment
