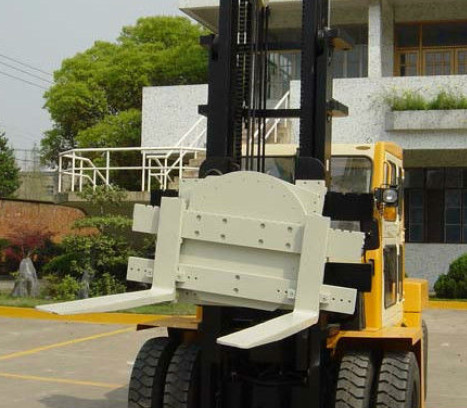

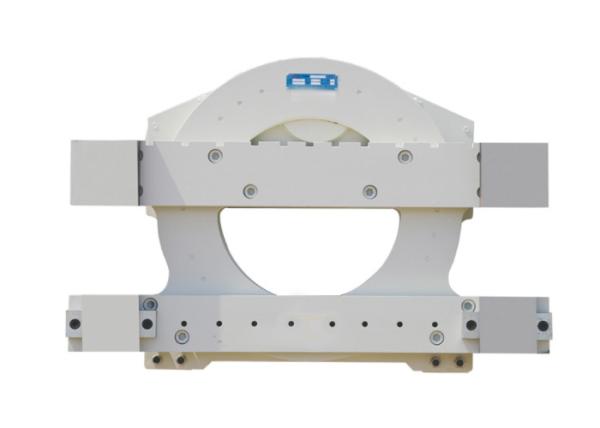

360 degree forklift attachment rotators 3 Ton 3.5 Ton Class for
lifting
Functions & Applications
Quickly flip 360-degree containers that need to be turned or turned
over and emptied. It is widely used in industries such as food,
chemical industry, environmental sanitation, article recycling,
smelting and casting, and any occasion where hoppers or boxes need
to be turned over.
Features
* The high-strength structure design and the unique rotary drive
device meet the users' high-strength continuous operation.
* Superior arm-slide bearing for extended service life.
Options
* Different carriage width
* Fork
Parameter
Capacity@
Load Center
(Kg@mm) | Model No. | Carriage Width
B(mm) | Fork Max.
Spacing
OTO(mm) | Overall
Width
C(mm) | Vertical
Center of
Gravity
CGV(mm) | Weight
(kg) | Effective
Thickness
ET(mm) | Horizontal
Center of
Gravity
CGH(mm) |
| 1700@500 | RRB20D-001A | 815 | 705 | 840 | 320 | 188 | 127 | 56 |
| 1600@500 | RRB20D-002A | 815 | 705 | 840 | 265 | 254 | 165 | 122 |
| 1600@500 | RRB20D-003A | 815 | 705 | 840 | 255 | 259 | 165 | 150 |
| 1600@500 | RRB20D-004A | 815 | 705 | 840 | 245 | 268 | 165 | 178 |
| 1600@500 | RRB20D-005A | 815 | 705 | 840 | 235 | 277 | 165 | 206 |
Remark:
1. Obtain the actual capacity of the forklift and attachments from
the forklift manufacturer.
2. One set additional oil circuit required on forklift.
3. According to user needs to add forks. Please note the forks’
capacity.
4. The actual mounting, please according to the fork width
adjustment positioning block, choose one mating surface preventing
load rotates, fork on the upper and lower cross beam under moving.
Applicable Industries
Hotels, Garment Shops, Building Material Shops, Chemical, Smelting
industry, Foundry
Can be customized according to size
Customized solutions:
Carton Clamp
Block Clamp
Bale Clamp
Roll Clamp
......
all kinds of attachment
