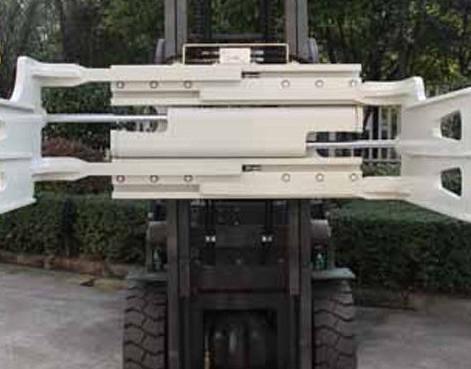

High quality forklift accessory clamps with different capacities
Parameter
Capacity@
Load Center
(Kg@mm) | Model No. | Opening Range
O (mm) | Arm Height
A (mm) | Arm
Length
B (mm) | Frame
Width
C (mm) | Arm
Thickness
D (mm) | Overall
Height
E (mm) | Vertical
Center of
Gravity
CGV(mm) | Weight
(kg) | Effective
Thickness
ET(mm) | Horizontal
Center of
Gravity
CGH(mm) |
| 2200@500 | BCS30D-011B | 490-2300 | 460 | 990 | 1600 | 75 | 730 | 255 | 710 | 150 | 240 |
| 2200@500 | BCS30D-012B | 490-2300 | 460 | 1195 | 1600 | 75 | 730 | 255 | 730 | 150 | 240 |
Remark
1. Obtain the actual capacity of forklift and accessories from the
forklift manufacturer.
2. Two sets of additional oil circuits are required on the
forklift.
3. The open arm range is the space between the two arm tips.
4. The arm thickness "d" is the actual required operating space.
5. Rotate the bale clamp optionally.
Functions & Applications
The bundle clamp has the characteristics of high efficiency, low
price and convenient maintenance, and has a very wide range of
application scenarios. The binding clamp is mainly used in the
following fields: transportation, aquatic products, metal industry,
wood industry, animal husbandry, warehousing, etc.
Options
* User defined range
* Custom arm size
* Various installation categories are available
* Load backrest
* Bolzenbalen Arm
Applicable Industries
Building materials shop, machinery repair shop, metal industry,
timber industry
Can be customized according to size
Customized solutions:
Carton Clamp
Block Clamp
Bale Clamp
Roll Clamp
......
all kinds of attachment
