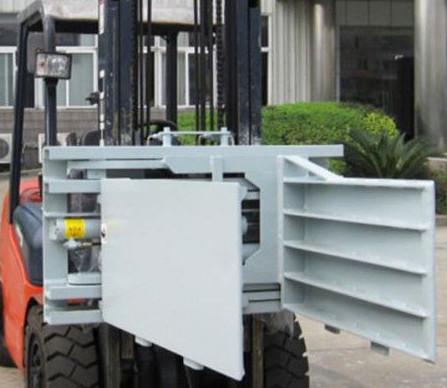

High quality forklift accessory terminals with different capacities
Parameter
Capacity@
Load Center
(Kg@mm) | Model No. | Opening Range
O (mm) | Arm Height
A (mm) | Arm
Length
B (mm) | Frame
Width
C (mm) | Arm
Thickness
D (mm) | Overall
Height
E (mm) | Vertical
Center of
Gravity
CGV(mm) | Weight
(kg) | Effective
Thickness
ET(mm) | Horizontal
Center of
Gravity
CGH(mm) |
| 2200@500 | BCS30D-011B | 490-2300 | 460 | 990 | 1600 | 75 | 730 | 255 | 710 | 150 | 240 |
| 2200@500 | BCS30D-012B | 490-2300 | 460 | 1195 | 1600 | 75 | 730 | 255 | 730 | 150 | 240 |
Remark
1. Get the actual capacity of the stacker and accessories from the
stacker manufacturer.
2. Two sets of additional oil circuits are required on the
forklift.
3. The open arm is the distance between the two arms tips.
4. The "d" arm thickness is the actual working space required.
5. Turn the balloon cell optionally.
Functions & Applications
The Bundle Terminal is characterized by high efficiency, low price
and convenient maintenance and has a variety of application
scenarios. The Bindle Terminal is mainly used in the following
areas: transport, water products, metal industry, wood industry,
animal husbandry, storage, etc.
Options
* User defined opening range
* Custom arm size
* Various installation categories are available
* Load backrest
* Bolt bale arm
Applicable Industries
Building materials shop, machine repair, metal industry, wood
industry
Can be customized according to size
Customized solutions:
1. Carton Clamp
2. Block Clamp
3. Bale Clamp
4. Roll Clamp
......
all kinds of attachment
