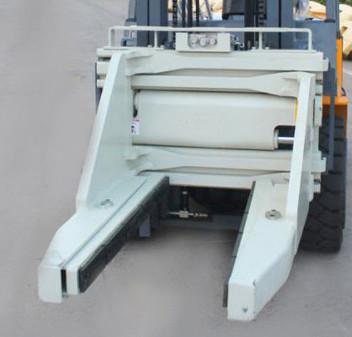

Forklift connecting block clamp cement plate side moving brick
clampMain features of forklift concrete block clamp attachments
1. Wide-view mast
Wide-view mast gives the operator an enhanced forward visibility,
which adds great to the efficiency and safety of operator.
2. High-strength overhead guard
Specially designed solid over-head guard provides additional
security for the operator.
3. Ergonomics seat
Designed according to ergonomic principles, makes operation much
comfortable and also relieves the fatigue caused by long time
continuous operation.
4. Reliable instruments
The instruments offer an easy access to the working condition of
the truck, thus makes handling process more efficient and safe.
Parameter
Capacity@
Load Center
(Kg@mm) | Model No. | Mounting Class | Opening Range
O (mm) | Arm Height
H (mm) | Arm
Length
L (mm) | Frame
Width
B (mm) | Arm
Thickness
T (mm) | Overall
Height
A (mm) | Vertical
Center of
Gravity
CGV(mm) | Weight
(kg) | Effective
Thickness
ET(mm) | Horizontal
Center of
Gravity
CGH(mm) |
| Sideshifting |
| 2700@500 | CKS30D-001A | II | 290-1610 | 128 | 1100 | 1016 | 202 | 710 | 220 | 500 | 145 | 220 |
| 2700@500 | CKS30D-001B | III | 290-1610 | 128 | 1100 | 1016 | 202 | 710 | 220 | 500 | 152 | 220 |
| 2700@500 | CKS30D-002B | III | 290-1610 | 242 | 1100 | 1016 | 202 | 710 | 220 | 550 | 152 | 220 |
| 2700@500 | CKS30D-002A | II | 290-1610 | 242 | 1100 | 1016 | 202 | 710 | 220 | 550 | 145 | 220 |
| 2700@500 | CKS30D-003A | II | 290-1610 | 128 | 1000 | 1016 | 202 | 710 | 220 | 490 | 145 | 211 |
| 2700@500 | CKS30D-003B | III | 290-1610 | 128 | 1000 | 1016 | 202 | 710 | 220 | 490 | 152 | 220 |
| 2700@500 | CKS30D-004B | III | 290-1610 | 242 | 1400 | 1016 | 202 | 710 | 220 | 650 | 152 | 250 |
Remark:
1. Obtain the actual capacity of forklift and accessories from the
forklift manufacturer.
2. Two sets of additional oil circuits are required on the
forklift.
3. The arm height of 128mm is single glue type, and the arm height
of 242mm is double glue type.
Installation&Option
Hydraulic Flow&Pressure
| Model | Min.
Hydraulic
Flow(L/min) | Rec.
Hydraulic
Flow(L/min) | Max.
Hydraulic
Flow(L/min) | Min.
Hydraulic
Pressure(Bar) | Max.
Hydraulic
Pressure(Bar) |
| CKS30D | 15 | 40 | 40 | 35 | 160 |
Options:
* Left and right arm clamping independent movement.
Applicable Industries
Hotels, clothing stores, building materials stores.
Can be customized according to size
Customized solutions:
1. Carton Clamp
2. Block Clamp
3. Bale Clamp
4. Roll Clamp
......
all kinds of attachment
